Description

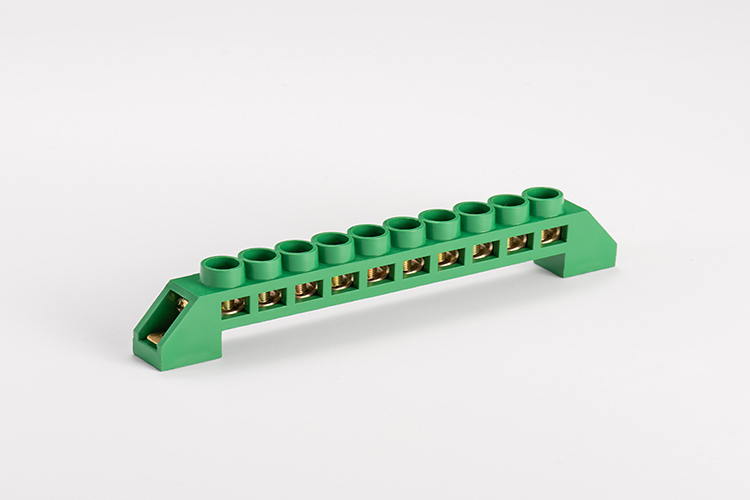

Brass Terminal block T004

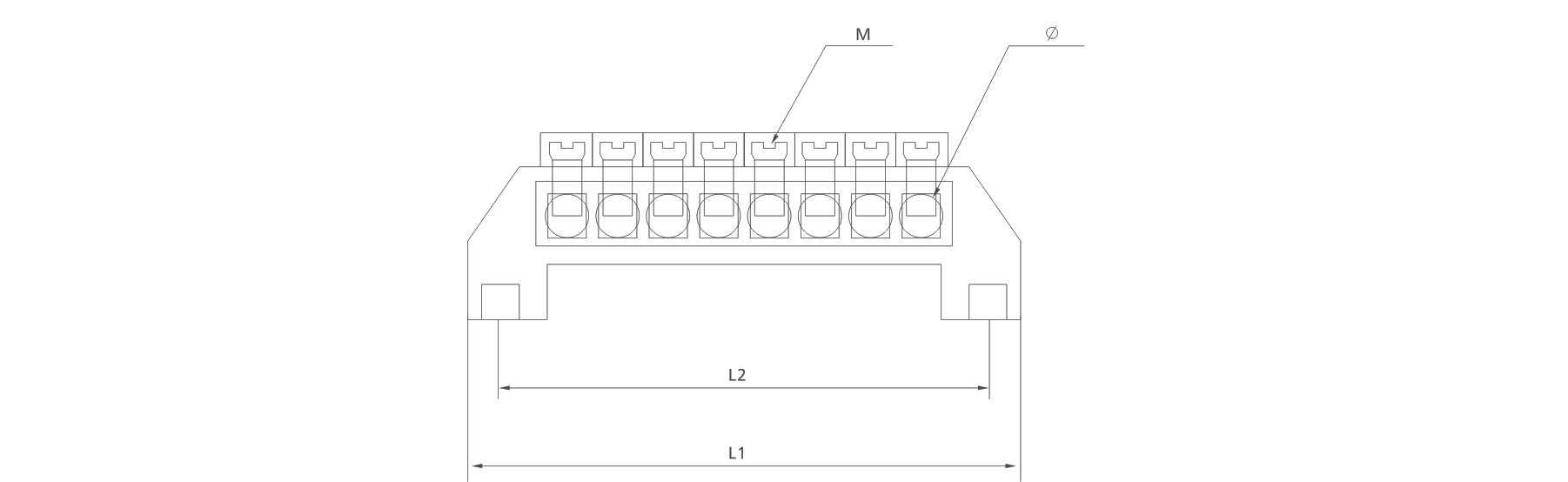

| Article No. | Ways | Spec. | L1(mm) | L2 (mm) | M Screws | Φ Diameter | Remark |
| T004-0609/4 | 4 | 6×9 | 60.5 | 48.5 | M4 | 6 | T004-0609/4B Blue T004-0609/4G Green |
| T004-0609/6 | 6 | 6×9 | 78 | 65.5 | M4 | 6 | T004-0609/6B Blue T004-0609/6G Green |
| T004-0609/8 | 8 | 6×9 | 95 | 82.5 | M4 | 6 | T001-0609/10B Blue T001-0609/10G Green |
| T004-0609/10 | 10 | 6×9 | 112 | 100 | M4 | 6 | T004-0609/10B Blue T004-0609/10G Green |
| T004-0609/12 | 12 | 6×9 | 129 | 117 | M4 | 6 | T004-0609/12B Blue T004-0609/12G Green |
| T004-0812/4 | 4 | 8×12 | 59.5 | 48.5 | M5 | 7 | T004-0812/4B Blue T004-0812/4G Green |
| T004-0812/6 | 6 | 8×12 | 76.4 | 65.5 | M5 | 7 | T004-0812/6B Blue T004-0812/6G Green |
| T004-0812/8 | 8 | 8×12 | 94 | 82.5 | M5 | 7 | T004-0812/8B Blue T004-0812/8G Green |
| T004-0812/10 | 10 | 8×12 | 111 | 100 | M5 | 7 | T004-0812/10B Blue T004-0812/10G Green |
| T004-0812/12 | 12 | 8×12 | 128 | 117 | M5 | 7 | T004-0812/12B Blue T004-0812/12G Green |
