Description

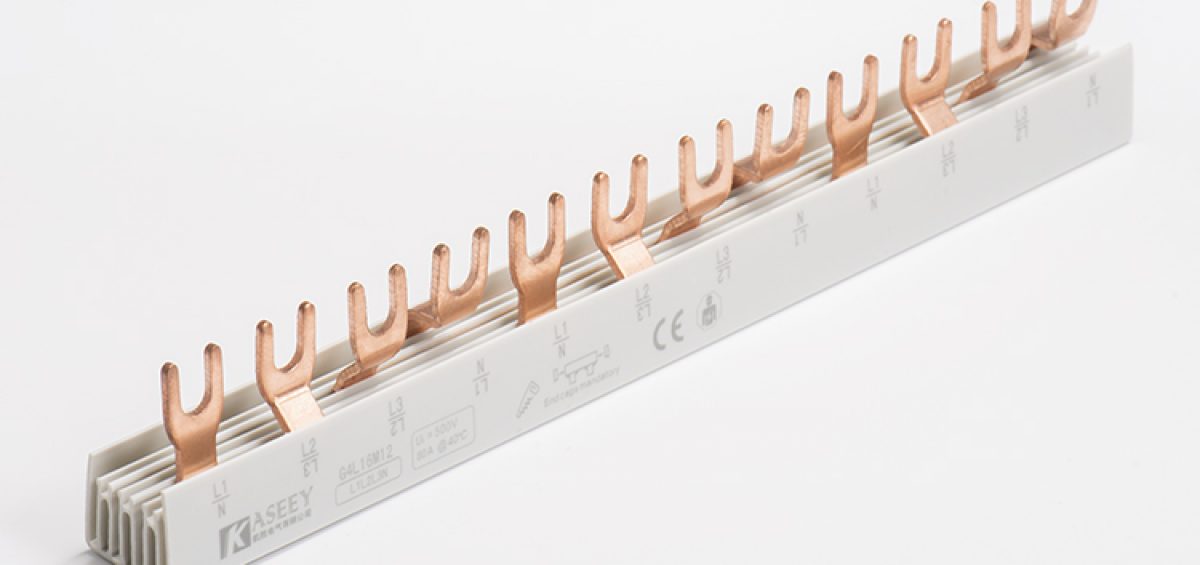

Fork type, 4 phase busbars (M6)
KASEEY BUSBAR FOR MCBS,COPPER BUSBAR, G-4L

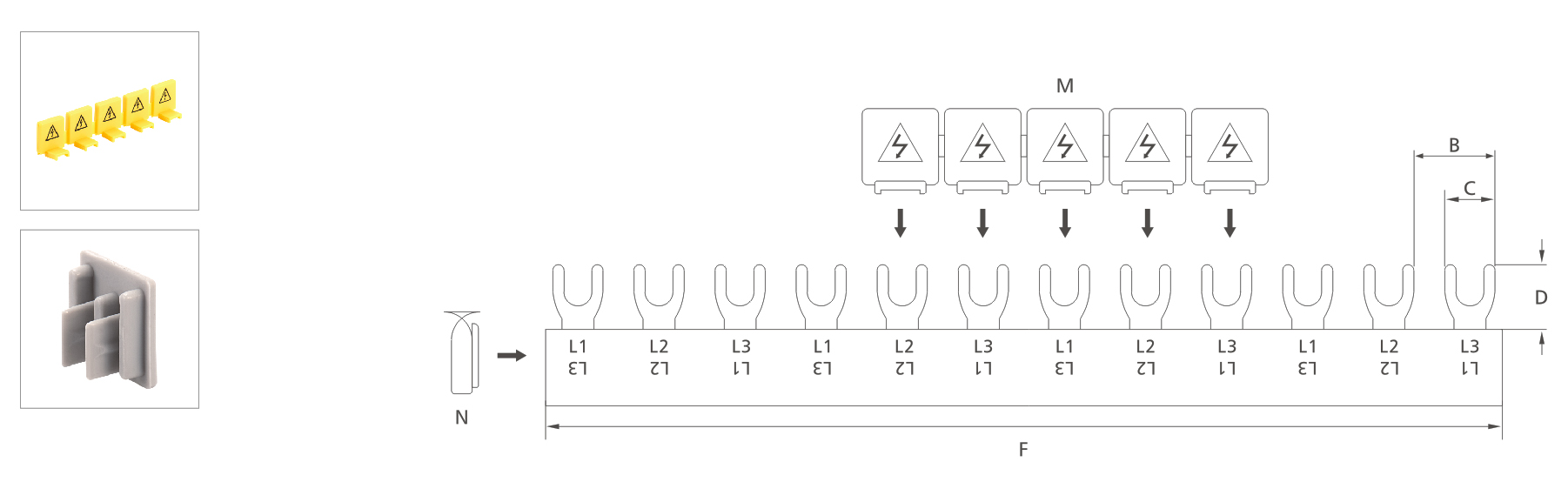

| Description | Article No. | A | B | C | D | E | F | G |
| Cross Section | Distance
(mm) |
Width of Fork
(mm) |
Length of Pin
(mm) |
Modules | Length(mm) | Reference
Current |
||
| G-4L-210/8C | KG41208C | 8mm² | 17.8 | 11 | 13.5 | 12 | 210 | 50 A |
| G-4L-210/10C | KG41210C | 10mm² | 17.8 | 11 | 13.5 | 12 | 210 | 63 A |
| G-4L-210/13C | KG41213C | 13mm² | 17.8 | 11 | 13.5 | 12 | 210 | 70 A |
| G-4L-210/16C | KG41216C | 16mm² | 17.8 | 11 | 13.5 | 12 | 210 | 80 A |
| G-4L-1016/8HC | KG45608C | 8mm² | 17.8 | 11 | 13.5 | 56 | 1016 | 50 A |
| G-4L-1016/10HC | KG45610C | 10mm² | 17.8 | 11 | 13.5 | 56 | 1016 | 63 A |
| G-4L-1016/13HC | KG45613C | 13mm² | 17.8 | 11 | 13.5 | 56 | 1016 | 70 A |
| G-4L-1016/16HC | KG45616C | 16mm² | 17.8 | 11 | 13.5 | 56 | 1016 | 80 A |
