Description

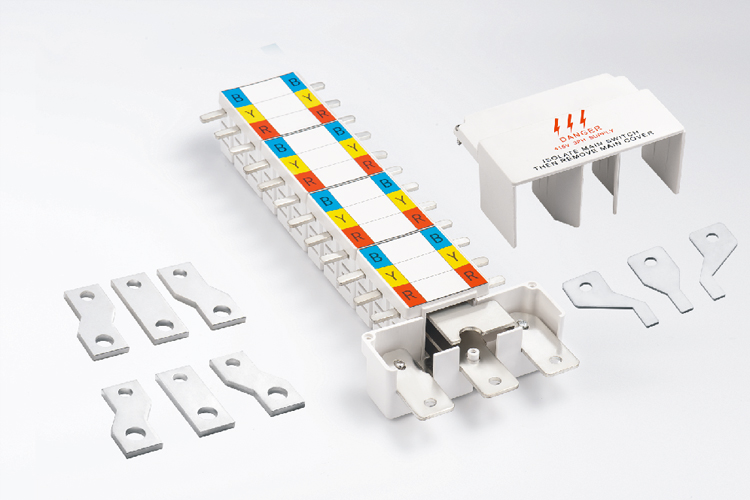

Pan assembly busbar
| Model | Connect Size(mm)T*W | Outline Size(mm)T*W | Busbar Size(mm) L*W*H |
| KP-125A/12W | 2X5 | 2X20 | 180x49x46 |
| KP-125A/18W | 2X5 | 2X20 | 234x49x46 |
| KP-125A/24W | 2X5 | 2X20 | 288x49x46 |
| KP-125A/30W | 2X5 | 2X20 | 342x49x46 |
| KP-125A/36W | 2X5 | 2X20 | 396x49x47 |
| KP-125A/42W | 2X5 | 2X20 | 450x49x47 |
| KP-125A/48W | 2X5 | 2X20 | 504x49x48 |
| KP-125A/54W | 2X5 | 2X20 | 588x49x48 |
| KP-125A/60W | 2X5 | 2X20 | 612x49x49 |
| KP-250A/12W | 3X5 | 3X20 | 180x49x49 |
| KP-250A/18W | 3X5 | 3X20 | 234x49x50 |
| KP-250A/24W | 3X5 | 3X20 | 288x49x46 |
| KP-250A/30W | 3X5 | 3X20 | 342x49x46 |
| KP-250A/36W | 3X5 | 3X20 | 396x49x47 |
| KP-250A/42W | 3X5 | 3X20 | 450x49x47 |
| KP-250A/48W | 3X5 | 3X20 | 504x49x48 |
| KP-250A/54W | 3X5 | 3X20 | 588x49x48 |
| KP-250A/60W | 3X5 | 3X20 | 612x49x49 |
