Description

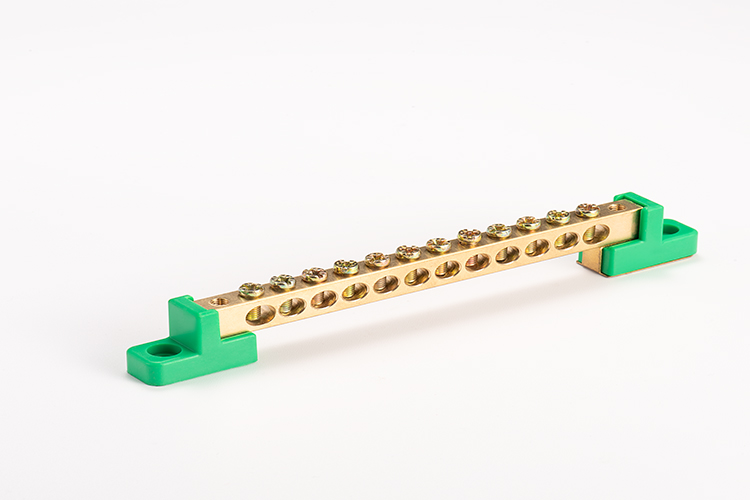

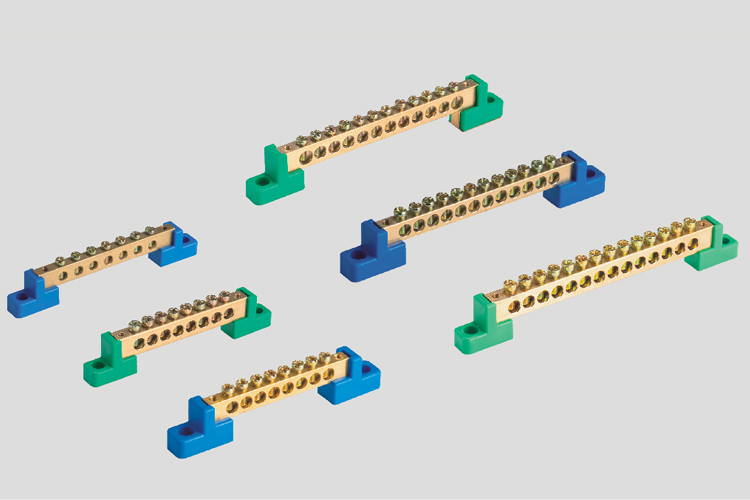

Brass Terminal block T001
| Article No. | Ways | Spec. | L1(mm) | L2 (mm) | M Screws | Φ Diameter | Remark |
| T001-0609/4 | 4 | 6×9 | 71.5 | 58.5 | M4 | 5.2 | T001-0609/4B Blue T001-0609/4G Green |
| T001-0609/6 | 6 | 6×9 | 84.5 | 71.5 | M4 | 5.2 | T001-0609/6B Blue T001-0609/6G Green |
| T001-0609/8 | 8 | 6×9 | 97.5 | 84.5 | M4 | 5.2 | T001-0609/8B Blue T001-0609/8G Green |
| T001-0609/10 | 10 | 6×9 | 110.5 | 97.5 | M4 | 5.2 | T001-0609/10B Blue T001-0609/10G Green |
| T001-0609/12 | 12 | 6×9 | 123.5 | 110.5 | M4 | 5.2 | T001-0609/12B Blue T001-0609/12G Green |
| T001-0609/14 | 14 | 6×9 | 136.5 | 123.5 | M4 | 5.2 | T001-0609/14B Blue T001-0609/14G Green |
| T001-0609/16 | 16 | 6×9 | 149.5 | 136.5 | M4 | 5.2 | T001-0609/16B Blue T001-0609/16G Green |
| T001-0609/18 | 18 | 6×9 | 162.5 | 149.5 | M4 | 5.2 | T001-0609/18B Blue T001-0609/18G Green |
| T001-0812/4 | 4 | 8×12 | 73.5 | 60.5 | M5 | 6 | T001-0812/4B Blue T001-0812/4G Green |
| T001-0812/6 | 6 | 8×12 | 88.5 | 75.5 | M5 | 6 | T001-0812/6B Blue T001-0812/6G Green |
| T001-0812/8 | 8 | 8×12 | 103.5 | 90.5 | M5 | 6 | T001-0812/8B Blue T001-0812/8G Green |
| T001-0812/10 | 10 | 8×12 | 118.5 | 105.5 | M5 | 6 | T001-0812/10B Blue T001-0812/10G Green |
| T001-0812/12 | 12 | 8×12 | 133.5 | 120.5 | M5 | 6 | T001-0812/12B Blue T001-0812/12G Green |
| T001-0812/14 | 14 | 8×12 | 148.5 | 135.5 | M5 | 6 | T001-0812/14B Blue T001-0812/14G Green |
| T001-0812/16 | 16 | 8×12 | 163.5 | 150.5 | M5 | 6 | T001-0812/16B Blue T001-0812/16G Green |
| T001-0812/18 | 18 | 8×12 | 178.5 | 165.5 | M5 | 6 | T001-0812/18B Blue T001-0812/18G Green |
