Description

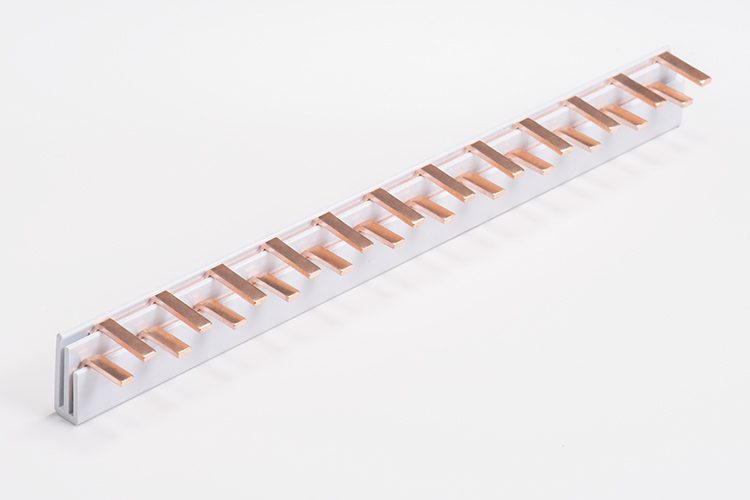

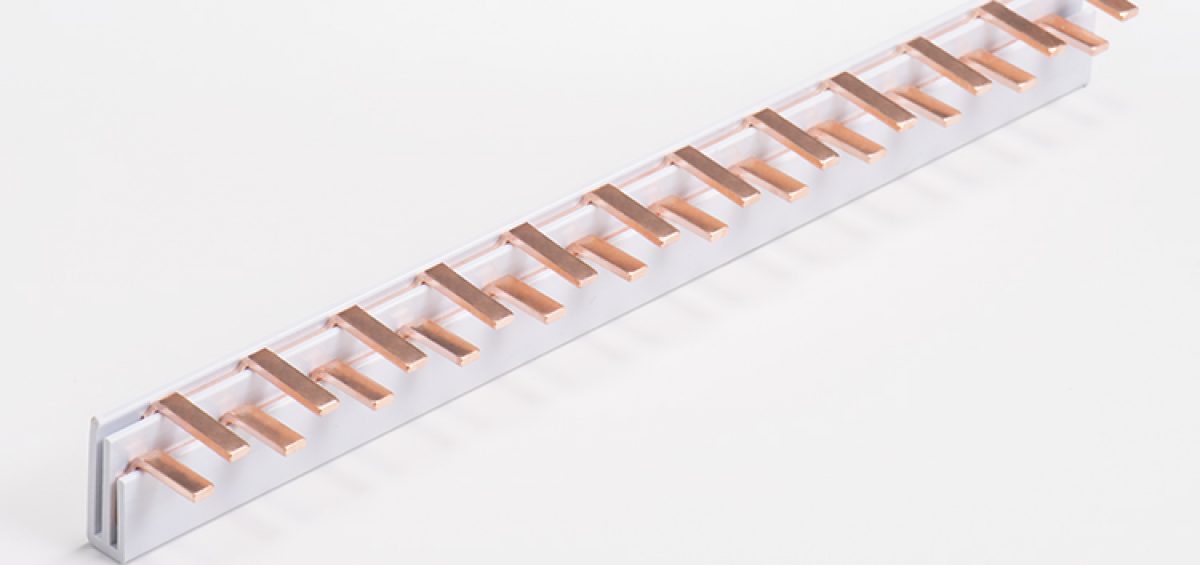

Pin type, 1P+N busbar DPNKASEEY BUSBAR FOR MCBS,COPPER COMB BUSBAR, DPN

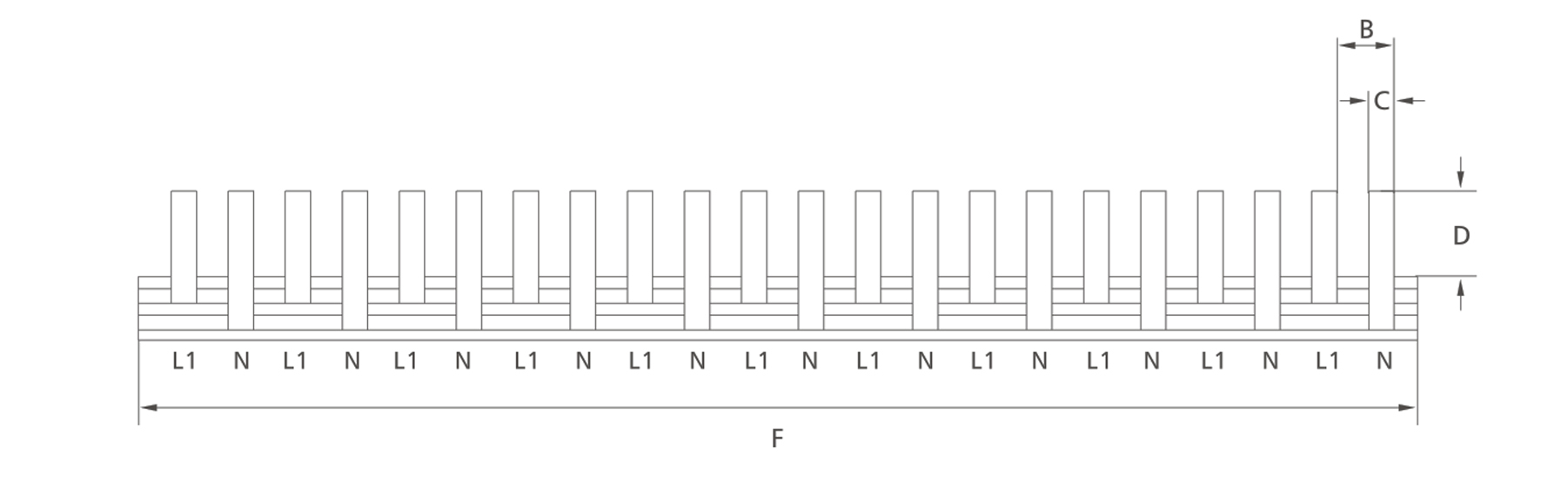

| Description | Article No. | A | B | C | D | E | F | G |
| Cross Section | Distance(mm) | Width of Fork(mm) | Length of Pin(mm) | Modules | Length(mm) | ReferenceCurrent | ||
| P-1+N-210/8 | KP61208 | 8mm² | 9 | 4 | 11.5 | 24 | 210 | 50 A |
| P-1+N-210/10 | KP61210 | 10mm² | 9 | 4 | 11.5 | 24 | 210 | 63 A |
| P-1+N-210/13 | KP61213 | 13mm² | 9 | 4 | 11.5 | 24 | 210 | 70 A |
| P-1+N-210/16 | KP61216 | 16mm² | 9 | 4 | 11.5 | 24 | 210 | 80 A |
| P-1+N-1000/8 | KP65408 | 8mm² | 9 | 4 | 11.5 | 108 | 1000 | 50 A |
| P-1+N-1000/10 | KP65410 | 10mm² | 9 | 4 | 11.5 | 108 | 1000 | 63 A |
| P-1+N-1000/13 | KP65413 | 10mm² | 9 | 4 | 11.5 | 108 | 1000 | 70 A |
| P-1+N-1000/16 | KP65416 | 16mm² | 9 | 4 | 11.5 | 108 | 1000 | 80 A |
