Description

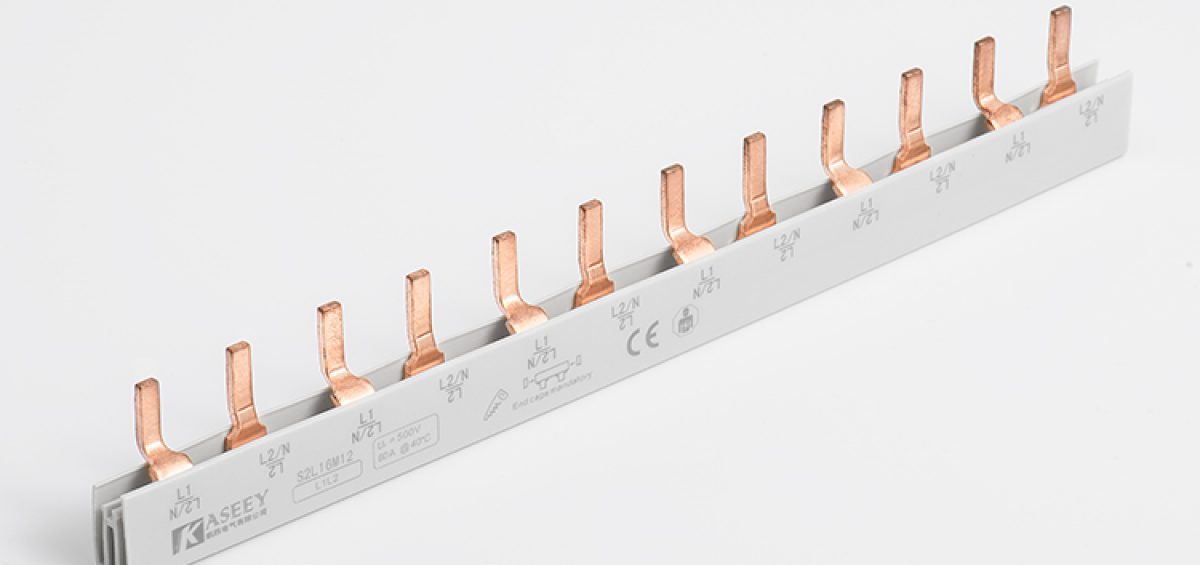

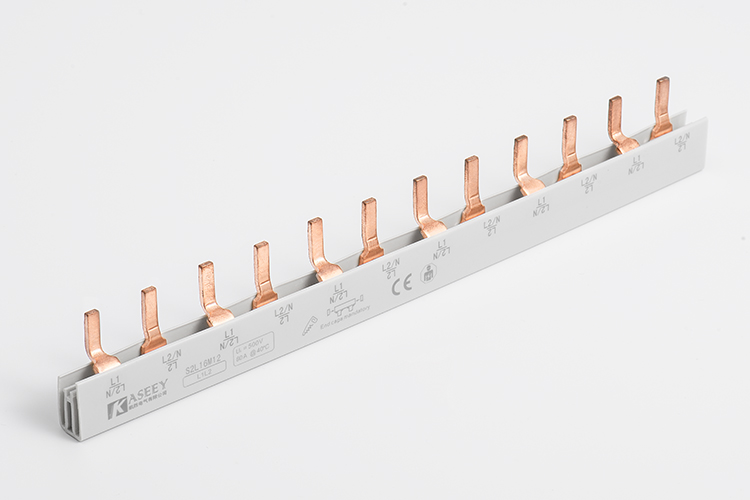

Pin type, 2 phase busbars
KASEEY BUSBAR FOR MCBS,COPPER COMB BUSBAR, S-2L

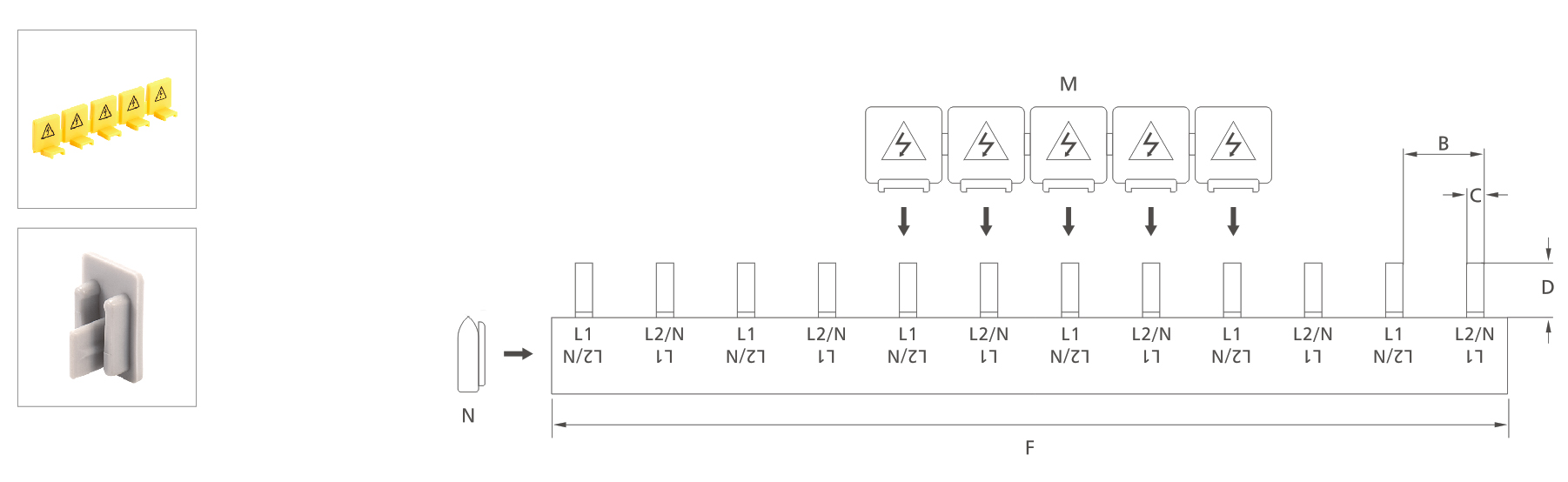

| Description | Article No. | A | B | C | D | E | F | G |
| Cross Section | Distance
(mm) |
Width of Fork
(mm) |
Length of Pin
(mm) |
Modules | Length(mm) | Reference
Current |
||
| S-2L-210/8 | KS21208 | 8mm² | 17.8 | 4 | 12.5 | 12 | 210 | 50 A |
| S-2L-210/10 | KS21210 | 10mm² | 17.8 | 4 | 12.5 | 12 | 210 | 63 A |
| S-2L-210/13 | KS21213 | 13mm² | 17.8 | 4 | 12.5 | 12 | 210 | 70 A |
| S-2L-210/16 | KS21216 | 16mm² | 17.8 | 4 | 12.5 | 12 | 210 | 80 A |
| S-2L-1000/8 | KS25408 | 8mm² | 17.8 | 4 | 12.5 | 54 | 1000 | 50 A |
| S-2L-1000/10 | KS25410 | 10mm² | 17.8 | 4 | 12.5 | 54 | 1000 | 63 A |
| S-2L-1000/13 | KS25413 | 13mm² | 17.8 | 4 | 12.5 | 54 | 1000 | 70 A |
| S-2L-1000/16 | KS25416 | 16mm² | 17.8 | 4 | 12.5 | 54 | 1000 | 80 A |
| S-2L-1016/8 | KS25608 | 8mm² | 17.8 | 4 | 12.5 | 56 | 1016 | 50 A |
| S-2L-1016/10 | KS25610 | 10mm² | 17.8 | 4 | 12.5 | 56 | 1016 | 63 A |
| S-2L-1016/13 | KS25613 | 13mm² | 17.8 | 4 | 12.5 | 56 | 1016 | 70 A |
| S-2L-1016/16 | KS25616 | 16mm² | 17.8 | 4 | 12.5 | 56 | 1016 | 80 A |
