Description

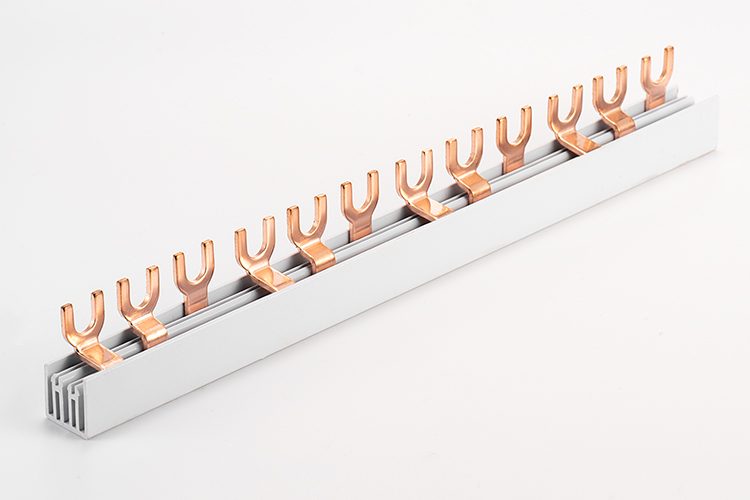

Fork type, 3 phase busbars (M6)Kaseey Busbar for MCBs, Copper busbar F-3L

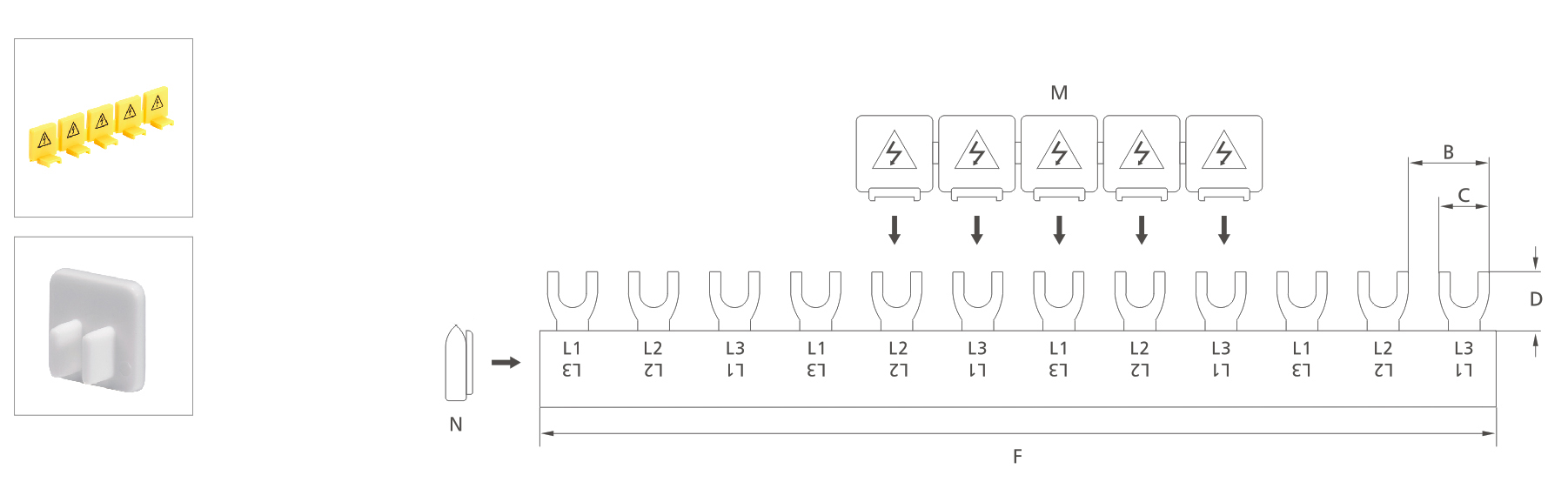

| Description | Article No. | A | B | C | D | E | F | G |
| Cross Section | Distance(mm) | Width of Fork(mm) | Length of Pin(mm) | Modules | Length(mm) | ReferenceCurrent | ||
| F-3L-210/8 | KF31208 | 8mm² | 17.8 | 12 | 12 | 12 | 210 | 50 A |
| F-3L-210/10 | KF31210 | 10mm² | 17.8 | 12 | 12 | 12 | 210 | 63 A |
| F-3L-210/13 | KF31213 | 13mm² | 17.8 | 12 | 12 | 12 | 210 | 70 A |
| F-3L-210/16 | KF31216 | 16mm² | 17.8 | 12 | 12 | 12 | 210 | 80 A |
| F-3L-1000/8 | KF35408 | 8mm² | 17.8 | 12 | 12 | 54 | 1000 | 50 A |
| F-3L-1000/10 | KF35410 | 10mm² | 17.8 | 12 | 12 | 54 | 1000 | 63 A |
| F-3L-1000/13 | KF35413 | 13mm² | 17.8 | 12 | 12 | 54 | 1000 | 70 A |
| F-3L-1000/16 | KF35416 | 16mm² | 17.8 | 12 | 12 | 54 | 1000 | 80 A |
| F-3L-1000/8 | KF35708 | 8mm² | 17.8 | 12 | 12 | 57 | 1016 | 50 A |
| F-3L-1000/10 | KF35710 | 10mm² | 17.8 | 12 | 12 | 57 | 1016 | 63 A |
| F-3L-1000/13 | KF35713 | 13mm² | 17.8 | 12 | 12 | 57 | 1016 | 70 A |
| F-3L-1000/16 | KF35716 | 16mm² | 17.8 | 12 | 12 | 57 | 1016 | 80 A |
