Description

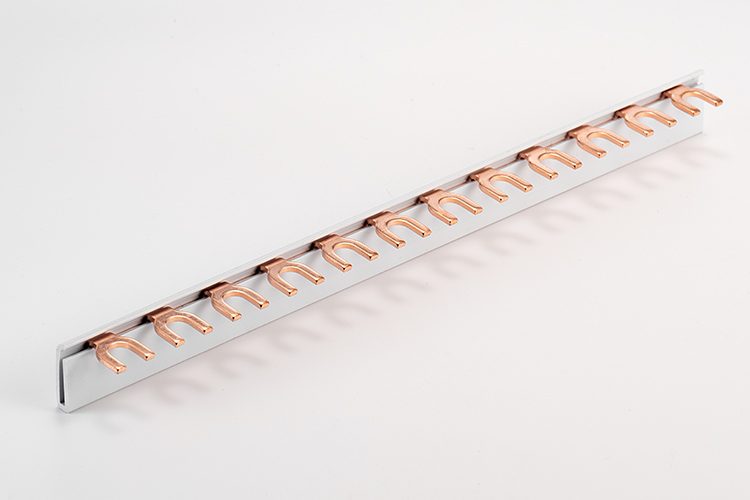

Fork type, 1 phase busbars (M6)
KASEEY BUSBAR FOR MCBS,COPPER BUSBAR, F-1L

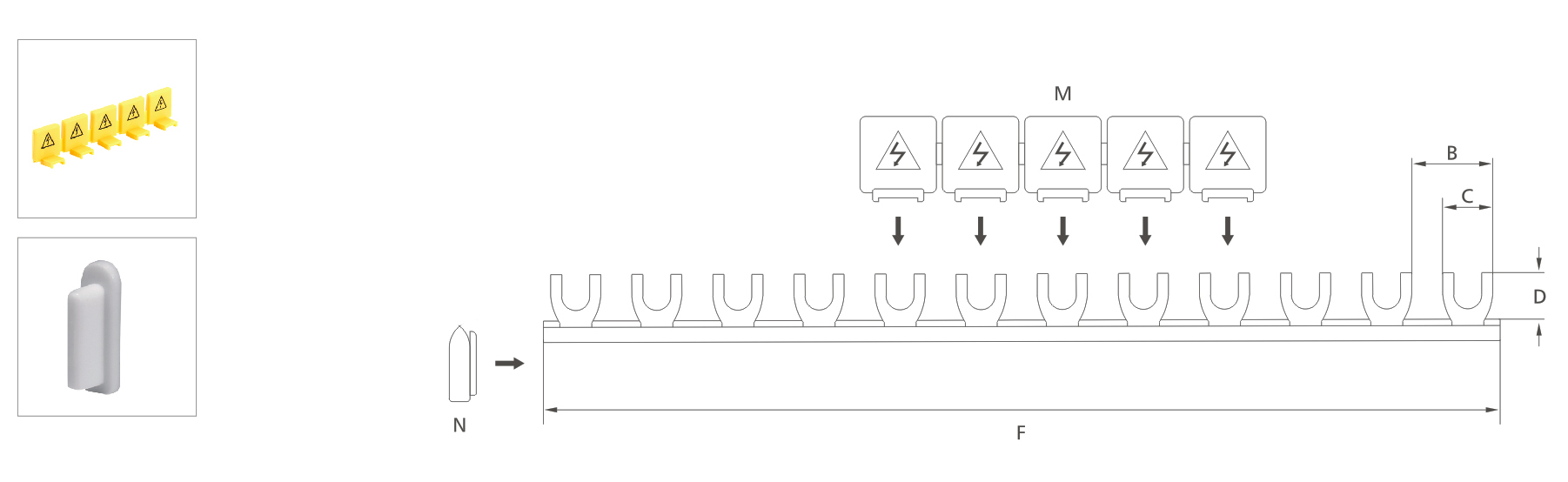

| Description | Article No. | A | B | C | D | E | F | G |
| Cross Section | Distance
(mm) |
Width of Fork
(mm) |
Length of Pin
(mm) |
Modules | Length(mm) | Reference
Current |
||
| F-1L-210/8 | KF11208 | 8mm² | 17.8 | 12 | 12 | 12 | 210 | 50 A |
| F-1L-210/10 | KF11210 | 10mm² | 17.8 | 12 | 12 | 12 | 210 | 63 A |
| F-1L-210/13 | KF11213 | 10mm² | 17.8 | 12 | 12 | 12 | 210 | 70 A |
| F-1L-210/16 | KF11216 | 16mm² | 17.8 | 12 | 12 | 12 | 210 | 80 A |
| F-1L-1000/8 | KF15408 | 8mm² | 17.8 | 12 | 12 | 54 | 1000 | 50 A |
| F-1L-1000/10 | KF15410 | 10mm² | 17.8 | 12 | 12 | 54 | 1000 | 63 A |
| F-1L-1000/13 | KF15413 | 13mm² | 17.8 | 12 | 12 | 54 | 1000 | 70 A |
| F-1L-1000/16 | KF15416 | 16mm² | 17.8 | 12 | 12 | 54 | 1000 | 80 A |
| F-1L-1016/8 | KF15708 | 8mm² | 17.8 | 12 | 12 | 57 | 1016 | 50 A |
| F-1L-1016/10 | KF15710 | 10mm² | 17.8 | 12 | 12 | 57 | 1016 | 63 A |
| F-1L-1016/13 | KF15713 | 13mm² | 17.8 | 12 | 12 | 57 | 1016 | 70 A |
| F-1L-1016/16 | KF15716 | 16mm² | 17.8 | 12 | 12 | 57 | 1016 | 80 A |
