Description

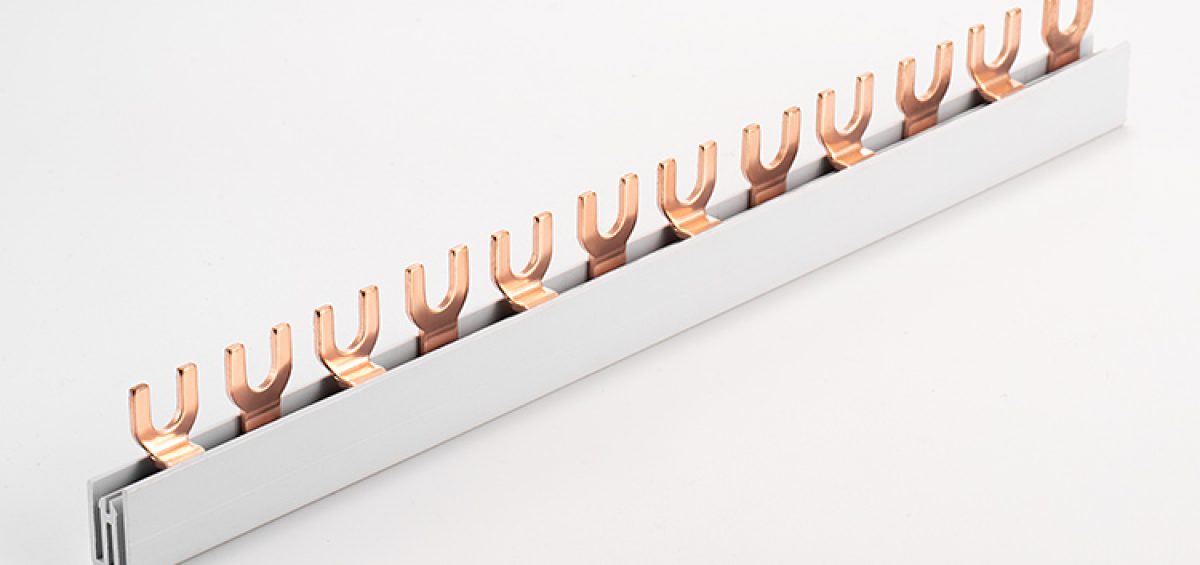

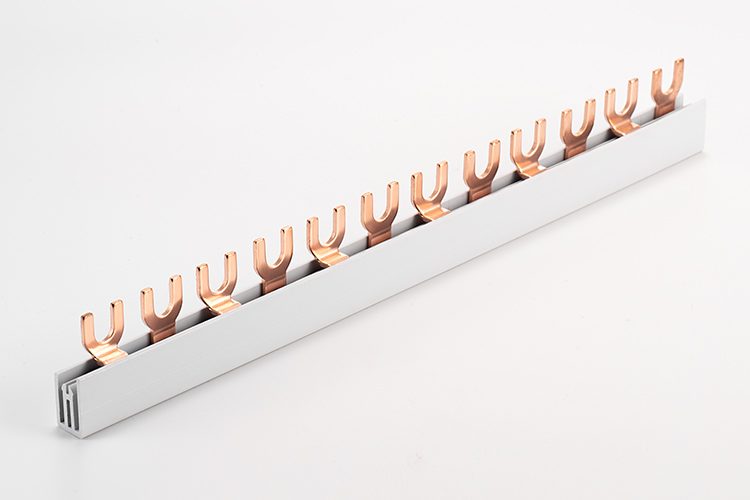

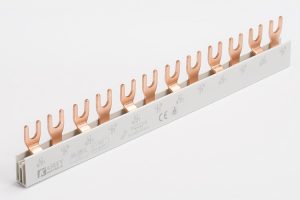

Fork type, 2 phase busbars (M6)Kaseey Busbars for MCBs, Copper busbars,F-2L

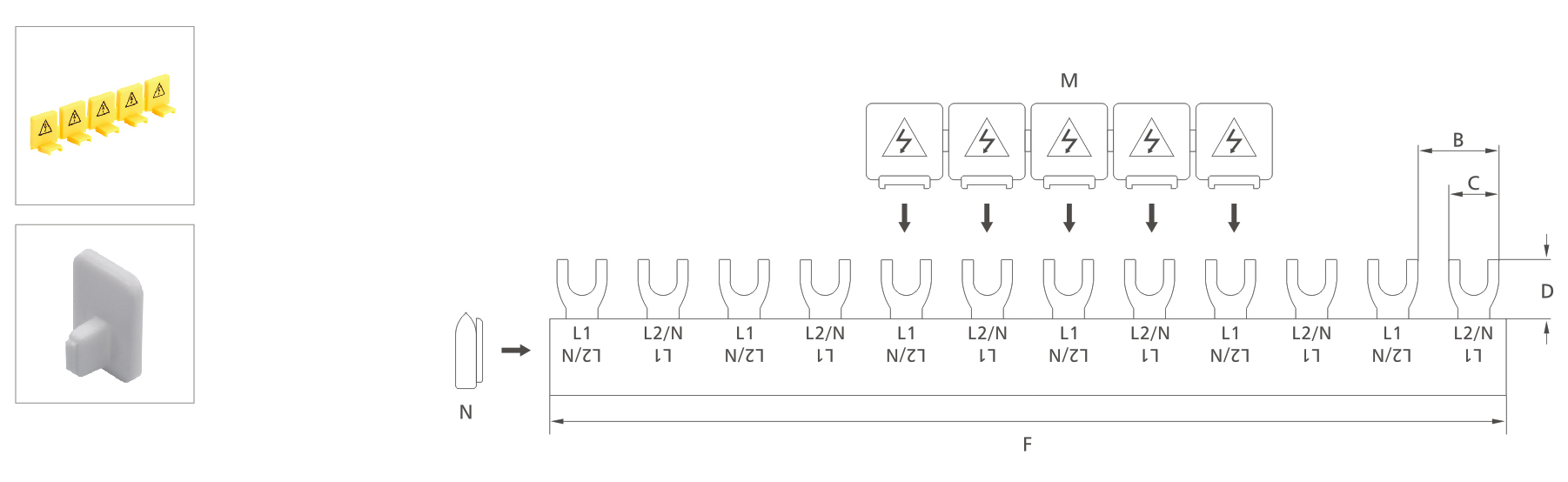

| Description | Article No. | A | B | C | D | E | F | G |
| Cross Section | Distance(mm) | Width of Fork(mm) | Length of Pin(mm) | Modules | Length(mm) | ReferenceCurrent | ||
| F-2L-210/8 | KF21208 | 8mm² | 17.8 | 12 | 12 | 12 | 210 | 50 A |
| F-2L-210/10 | KF21210 | 10mm² | 17.8 | 12 | 12 | 12 | 210 | 63 A |
| F-2L-210/13 | KF21213 | 13mm² | 17.8 | 12 | 12 | 12 | 210 | 70 A |
| F-2L-210/16 | KF21216 | 16mm² | 17.8 | 12 | 12 | 12 | 210 | 80 A |
| F-2L-1000/8 | KF25408 | 8mm² | 17.8 | 12 | 12 | 54 | 1000 | 50 A |
| F-2L-1000/10 | KF25410 | 10mm² | 17.8 | 12 | 12 | 54 | 1000 | 63 A |
| F-2L-1000/13 | KF25413 | 13mm² | 17.8 | 12 | 12 | 54 | 1000 | 70 A |
| F-2L-1000/16 | KF25416 | 16mm² | 17.8 | 12 | 12 | 54 | 1000 | 80 A |
| F-2L-1000/8H | KF25708 | 8mm² | 17.8 | 12 | 12 | 56 | 1016 | 50 A |
| F-2L-1000/10H | KF25710 | 10mm² | 17.8 | 12 | 12 | 56 | 1016 | 63 A |
| F-2L-1000/13H | KF25713 | 13mm² | 17.8 | 12 | 12 | 56 | 1016 | 70 A |
| F-2L-1000/16H | KF25716 | 16mm² | 17.8 | 12 | 12 | 56 | 1016 | 80 A |
