Description

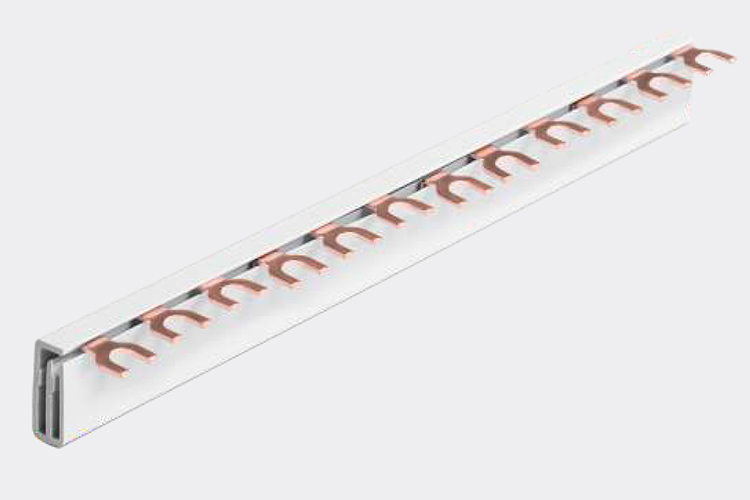

Fork type, 2 phase closed busbars
KASEEY BUSBAR FOR MCBS,COPPER BUSBAR, F-2L/D

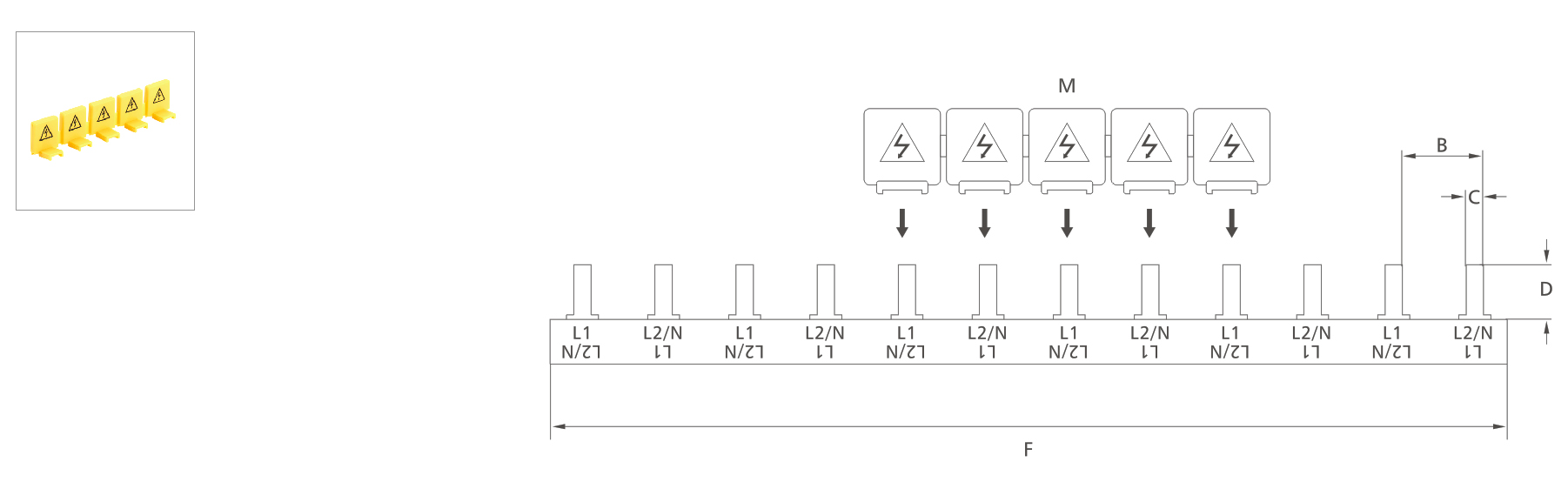

| Description | Article No. | A | B | C | D | E | F | G |
| Cross Section | Distance
(mm) |
Width of Fork
(mm) |
Length of Pin
(mm) |
Modules | Length(mm) | Reference
Current |
||
| F-2L-210/8D | KF21208D | 8mm² | 17.8 | 4 | 11.5 | 12 | 210 | 50 A |
| F-2L-210/10D | KF21210D | 10mm² | 17.8 | 4 | 11.5 | 12 | 210 | 63 A |
| F-2L-210/13D | KF21213D | 13mm² | 17.8 | 4 | 11.5 | 12 | 210 | 70 A |
| F-2L-210/16D | KF21216D | 16mm² | 17.8 | 4 | 11.5 | 12 | 210 | 80 A |
| F-2L-1000/8D | KF25408D | 8mm² | 17.8 | 4 | 11.5 | 54 | 1000 | 50 A |
| F-2L-1000/10D | KF25410D | 10mm² | 17.8 | 4 | 11.5 | 54 | 1000 | 63 A |
| F-2L-1000/13D | KF25413D | 10mm² | 17.8 | 4 | 11.5 | 54 | 1000 | 70 A |
| F-2L-1000/16D | KF25416D | 16mm² | 17.8 | 4 | 11.5 | 54 | 1000 | 80 A |
| F-2L-1016/8D | KF25608D | 8mm² | 17.8 | 4 | 11.5 | 56 | 1016 | 50 A |
| F-2L-1016/10D | KF25610D | 10mm² | 17.8 | 4 | 11.5 | 56 | 1016 | 63 A |
| F-2L-1016/13D | KF25613D | 13mm² | 17.8 | 4 | 11.5 | 56 | 1016 | 70 A |
| F-2L-1016/16D | KF25616D | 16mm² | 17.8 | 4 | 11.5 | 56 | 1016 | 80 A |
