Description

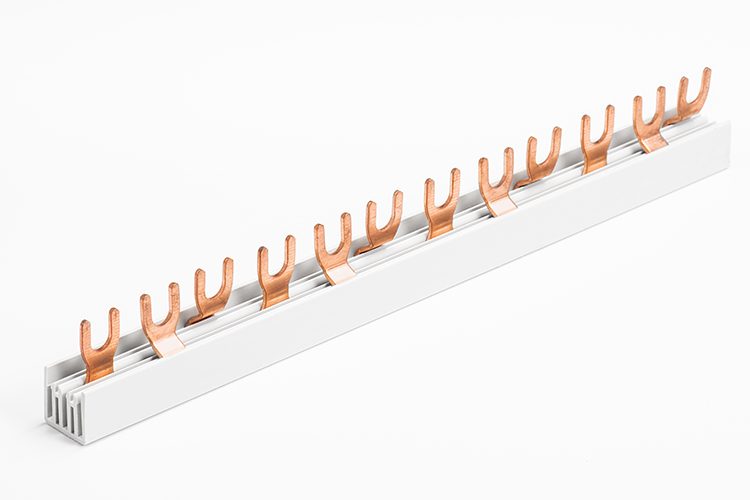

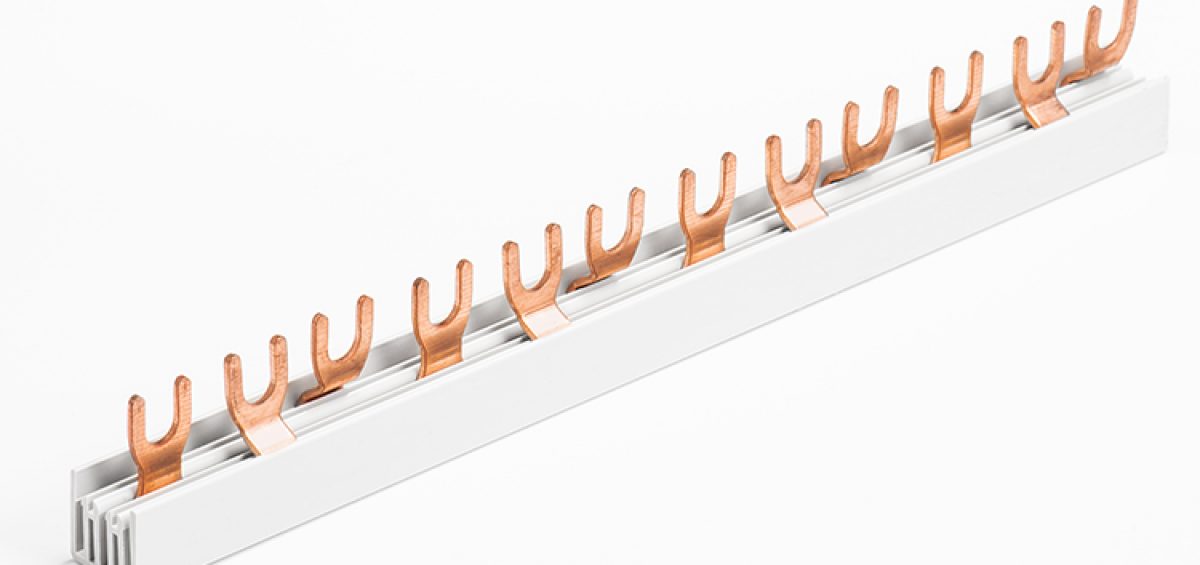

Fork type, 3 phase busbars (M6)
KASEEY BUSBAR FOR MCBS,COPPER BUSBAR, G-3L

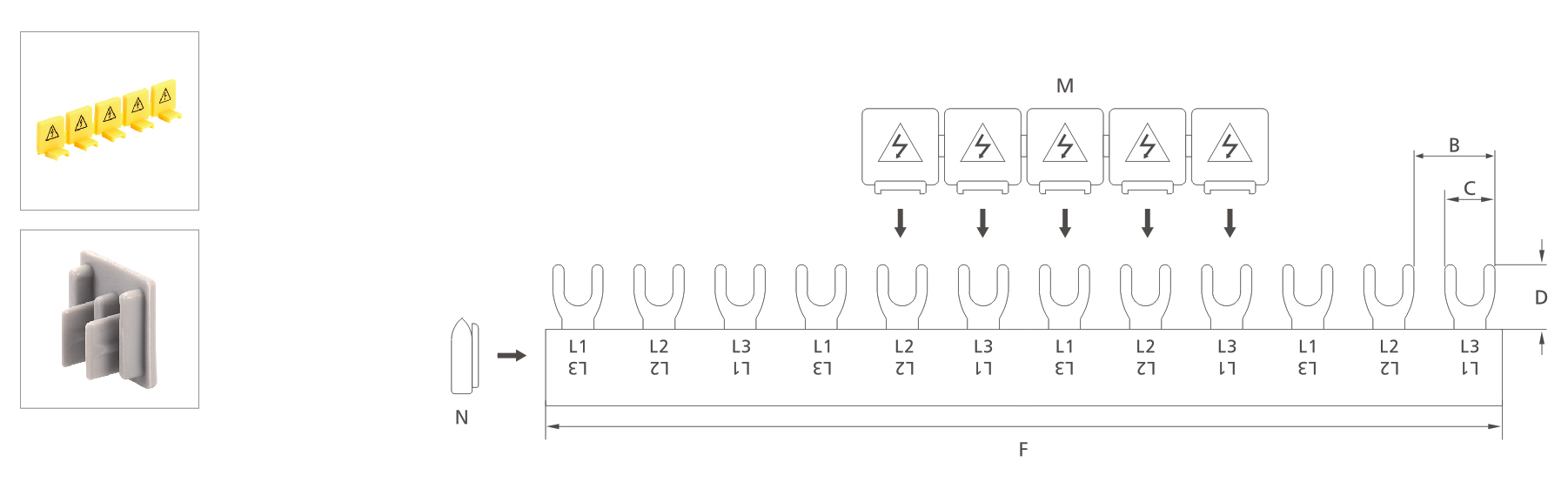

Description | Article No. | A | B | C | D | E | F | G |
Cross Section | Distance
(mm) |
Width of Fork
(mm) |
Length of Pin
(mm) |
Modules | Length(mm) | Reference
Current |
||
G-3L-210/8C | KG31208C | 8mm² | 17.8 | 11 | 13.5 | 12 | 210 | 50 A |
G-3L-210/10C | KG31210C | 10mm² | 17.8 | 11 | 13.5 | 12 | 210 | 63 A |
G-3L-210/13C | KG31213C | 13mm² | 17.8 | 11 | 13.5 | 12 | 210 | 70 A |
G-3L-210/16C | KG31216C | 16mm² | 17.8 | 11 | 13.5 | 12 | 210 | 80 A |
G-3L-1000/8C | KG35408C | 8mm² | 17.8 | 11 | 13.5 | 54 | 1000 | 50 A |
G-3L-1000/10C | KG35410C | 10mm² | 17.8 | 11 | 13.5 | 54 | 1000 | 63 A |
G-3L-1000/13C | KG35413C | 13mm² | 17.8 | 11 | 13.5 | 54 | 1000 | 70 A |
G-3L-1000/16C | KG35416C | 16mm² | 17.8 | 11 | 13.5 | 54 | 1000 | 80 A |
G-3L-1016/8C | KG35708C | 8mm² | 17.8 | 11 | 13.5 | 57 | 1016 | 50 A |
G-3L-1016/10C | KG35710C | 10mm² | 17.8 | 11 | 13.5 | 57 | 1016 | 63 A |
G-3L-1016/13C | KG35713C | 13mm² | 17.8 | 11 | 13.5 | 57 | 1016 | 70 A |
G-3L-1016/16C | KG35716C | 16mm² | 17.8 | 11 | 13.5 | 57 | 1016 | 80 A |
