Description

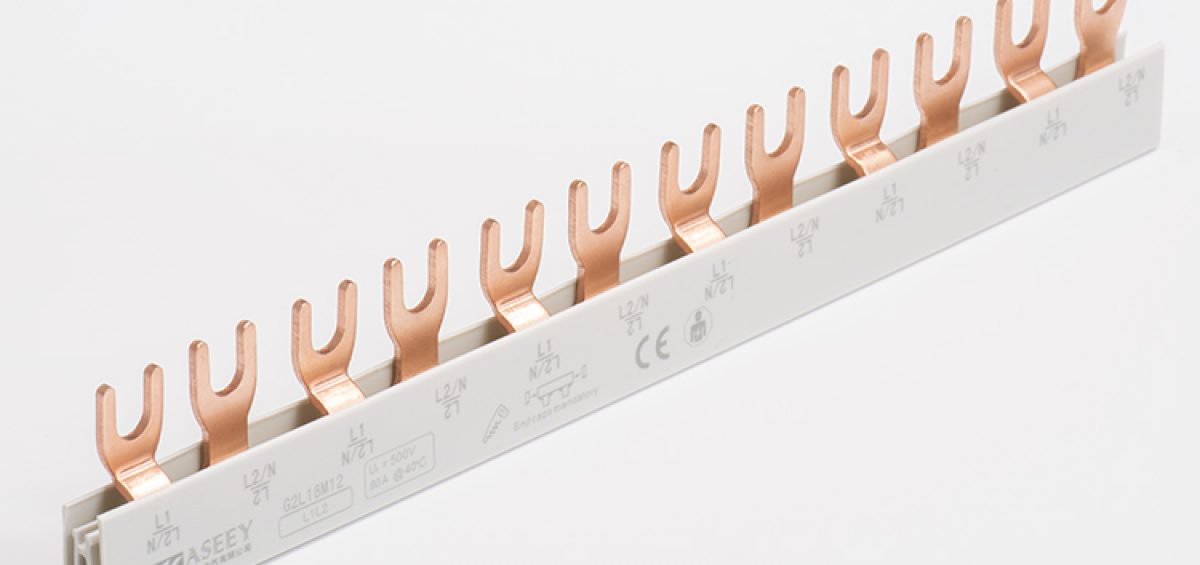

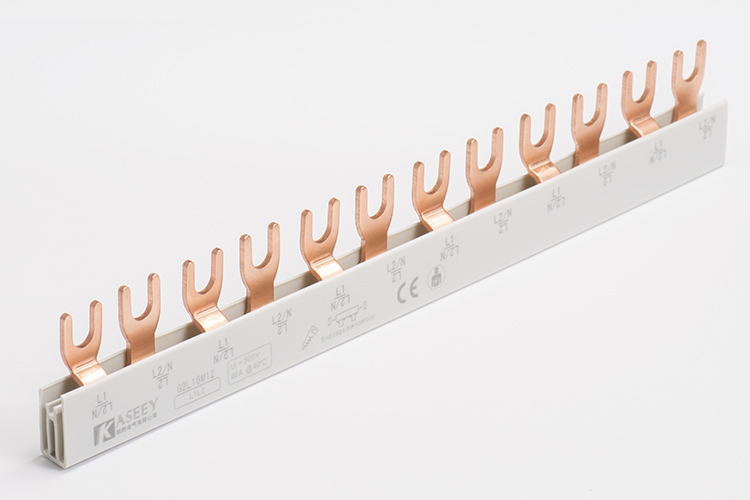

Fork type, 2 phase busbars (M6)KASEEY BUSBAR FOR MCBS,COPPER BUSBAR, G-2L

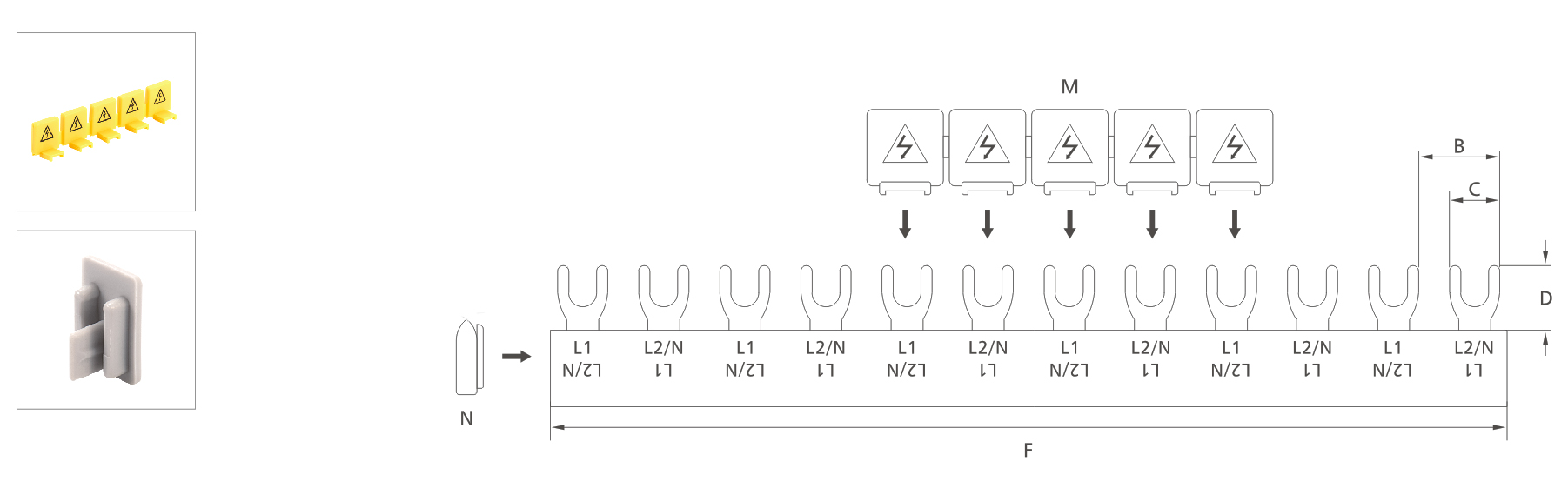

| Description | Article No. | A | B | C | D | E | F | G |
| Cross Section | Distance(mm) | Width of Fork(mm) | Length of Pin(mm) | Modules | Length(mm) | ReferenceCurrent | ||
| G-2L-210/8 | KG21208 | 8mm² | 17.8 | 11 | 13.5 | 12 | 210 | 50 A |
| G-2L-210/10 | KG21210 | 10mm² | 17.8 | 11 | 13.5 | 12 | 210 | 63 A |
| G-2L-210/13 | KG21213 | 13mm² | 17.8 | 11 | 13.5 | 12 | 210 | 70 A |
| G-2L-210/16 | KG21216 | 16mm² | 17.8 | 11 | 13.5 | 12 | 210 | 80 A |
| G-2L-1000/8 | KG25408 | 8mm² | 17.8 | 11 | 13.5 | 54 | 1000 | 50 A |
| G-2L-1000/10 | KG25410 | 10mm² | 17.8 | 11 | 13.5 | 54 | 1000 | 63 A |
| G-2L-1000/13 | KG25413 | 13mm² | 17.8 | 11 | 13.5 | 54 | 1000 | 70 A |
| G-2L-1000/16 | KG25416 | 16mm² | 17.8 | 11 | 13.5 | 54 | 1000 | 80 A |
| G-2L-1016/8 | KG25608 | 8mm² | 17.8 | 11 | 13.5 | 56 | 1016 | 50 A |
| G-2L-1016/10 | KG25610 | 10mm² | 17.8 | 11 | 13.5 | 56 | 1016 | 63 A |
| G-2L-1016/13 | KG25613 | 13mm² | 17.8 | 11 | 13.5 | 56 | 1016 | 70 A |
| G-2L-1016/16 | KG25616 | 16mm² | 17.8 | 11 | 13.5 | 56 | 1016 | 80 A |
